In the world of commercial AV, every connection counts and every watt matters.
Technical glitches like power failures or cable issues can derail even the most carefully planned event, leaving organisers scrambling and audiences disappointed.
The truth is, these problems usually trace back to overlooked or under-designed infrastructure.
At Showtime Production Services, we specialise in creating seamless, reliable power and cabling systems designed specifically for the demands of complex commercial AV setups.
From handling high loads to adapting on the fly, our solutions keep your equipment powered, connected, and performing flawlessly so you can focus on delivering an unforgettable experience, not troubleshooting on the fly.
Understanding Power and Cabling Foundations in Commercial AV
Main power requirements for AV hardware
Every plug and connector in your AV setup draws life from strategic power planning. Audio racks, processors, and amplifiers each come with their own draw. We always start by mapping power demand by device type. For instance, systems used at the
Let’s Go Greek Festival demanded clear load balancing across zones supporting speakers, displays, and control hubs. Clean layouts ensure minimal overload and no mid-show failure.
Overview of AV device power flows
Power flows like water in AV setups-it needs the right path and pressure. Devices upstream, like servers and DSPs, pass power through layers of switchers and extenders. We make sure grounding, phase matching, and source segregation happen to prevent loud hums or dropped feeds.
On Showtime, marine-safe flow mapping was essential to avoid current bleeding between decks.
Importance of stable voltage regulation
Sudden voltage changes are AV system nightmares. A loud pop through a speaker or flickering screen is often traced to poor voltage stability.
We rely on voltage regulators and power conditioners where critical digital gear sits. Sensitive mixers and LED walls simply can’t risk spikes, especially when events stretch from dusk to late-night playback.
Planning for adequate power capacity
Power needs to grow fast on big events. Adding one lighting array or mobile stage output can overshoot your budgeted load. We build in a 20 to 30 percent buffer in capacities wherever possible.
At Showtime , each deck had independent feed points sized beyond expected maximums-because live environments don’t tolerate sudden cut-offs.

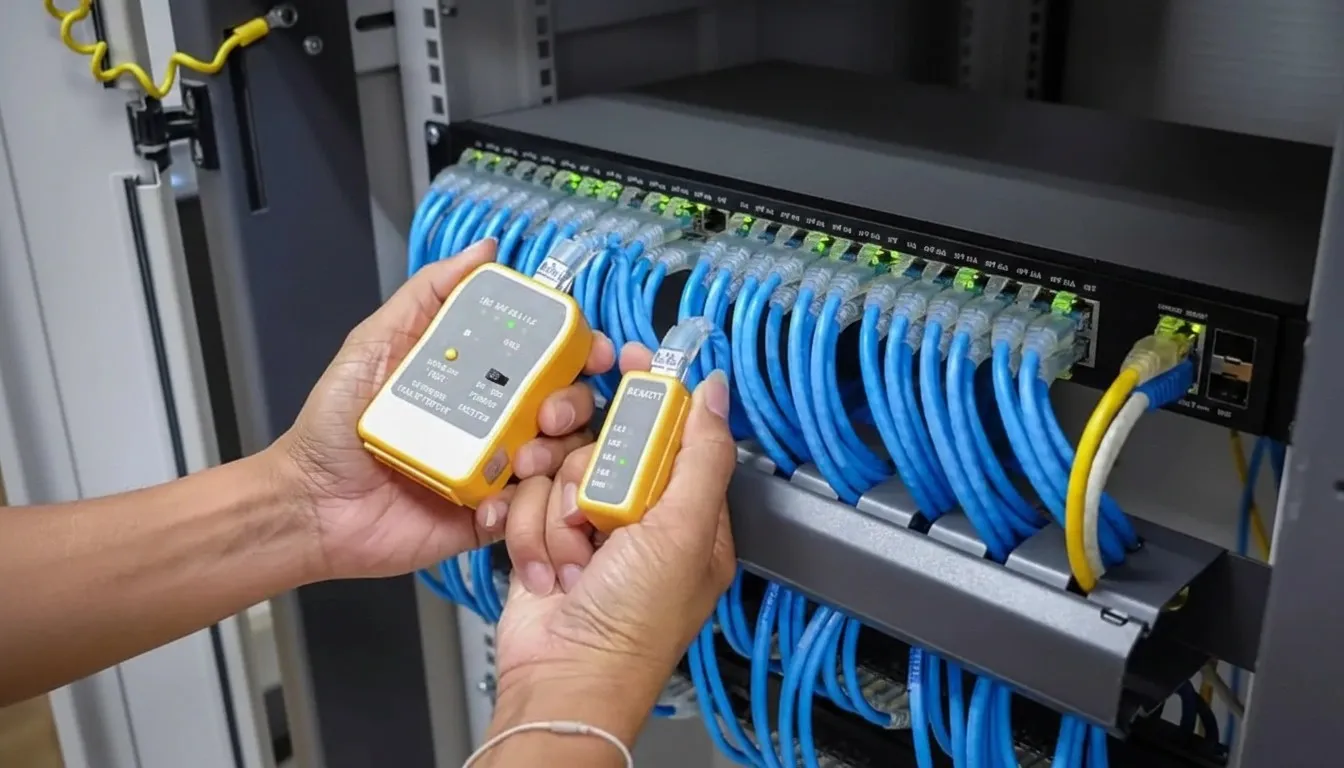

Structured Cabling Systems for AV Installations
CAT6A, CAT7A and fibre optic cable advantages
Not all data cords play nice with AV gear. CAT6A suits most current nodes, but CAT7A and multi-mode fibre handle serious lift. Where UHD streams or high-bitrate audio run round the clock, we spec fibre with tight bend radiuses and lower attenuation.
At large events, long fibre runs stop signal dropouts from cable-heavy venues.
Shielded vs unshielded twisted-pair cabling
Twisted-pair cabling handles most digital transport-but interference can creep in. Shielded variants protect against electric noise in live venues packed with lighting effects and wireless systems.
For BMW launches, we deploy shielded lines near high-load electrical sources and unshielded only in clean, controlled sections to keep audio clean and stable.
Delay skew and its impact on AV performance
Even a few nanoseconds make a difference when syncing HD video with audio. Delay skew happens when cable pairs carry signals at uneven speeds. We test all terminations to prevent this.
Fast fix like switching pairs isn’t enough-we match cabling to spec sheets and rely on verified lengths to hit timing marks right.
Role of horizontal and backbone cabling layouts
Cabling layout can make or break your install speed. We divide floor-level segments (horizontal) from long-haul (backbone) runs early.
At the Let’s Go Greek Festival, horizontal cable trunks connected food zones and stage hubs neatly to the command tent through fibre-spliced backbones, keeping security feeds and screen controls seamless.
Supporting HD and IP-Based AV Technologies
HDBaseT™, SDVoE, and SMPTE 2110 cabling needs
IP-based video brings powerful versatility but stricter cabling needs. HDBaseT™ does beautifully over CAT6A, SDVoE often needs 10Gb support, and 2110 setups call for fibre.
We balance those formats based on use. Stage camera feeds and remote monitor displays typically use SDVoE, while HDBaseT™ works well for room-wide switching.
Integration of PoE / PoH in AV installations
Power over Ethernet means fewer outlets, but more careful heat checks. PoE lighting systems we’ve installed need cables that won’t sag under load. PoH in IP cameras and touchscreens requires matching switch specs.
We calculate max draw per switch early and place injectors where drops need a stronger charge over longer runs.
RJ45 connector compatibility across AV systems
The simple RJ45 plug isn’t always simple. Many AV extenders and baluns have tight space and unusual clearance. We use tested modular cords paired with mechanically rated clips.
At Showtime, we opted for marine-rugged RJ45 connectors with metal collars to withstand salt air and constant plug-load without signal interruptions.
Long-distance fibre transmission for UHD video
UHD stretch requires serious bandwidth and shielding. We deploy single-mode fibre with low-loss transceivers for video walls or stadium panels. Pull tape combined with prep stations onsite speeds up termination while keeping dust off cores.
Stadium installs or huge venue setups benefit from such prep by limiting recalibration needs later.
Key Factors in Power Distribution Across AV Setups
Central vs distributed power supply design
Central supplies are neat-but risky alone. Distributed design gives flexibility and faster resets. Festival rigs we built used zoned distribution systems to reset feeder problems without halting the main show.
This lets support teams manage each zone’s load safely without triggering site-wide shutdowns when something hiccups midway through playback.
Effective power planning for device clusters
Grouping devices by draw keeps circuits balanced. High-load displays should never share power strips with routers or amps. We label clusters per zone-Audio Cluster 1, Lighting Cluster 2-and assign smart PDU support.
This provides remote reboot and watt tracking. Each rack tells a story, and our job is to make sure it ends with applause.
Power allocation for high-draw AV components
LED tiles, subwoofers, and DSP stacks don’t sip power-they demand gulps. We isolate such components on their own supply rails. Loudness clarity and pixel syncing depend on undisturbed current.
At automotive brand product reveals, we place amp racks closer to the stage to reduce line-loss and inductive bounce, giving tighter response.
Ensuring consistent backup and surge protection
Blips on the grid? Backup plans kick in. Our specs include UPS units for servers and DSPs, with fast-switching inverters for control systems.
Surge clamping avoids shockwaves from outages or lightning hits. Safety relays and filtered power strips aren’t extras-they’re mandatory on every kit we dispatch, big or small.
Flexible Cabling and Onsite Termination Options
Field-terminated plug systems (e.g. Z-PLUG®)
Forget waiting for factory cords. Z-PLUG® and similar systems let us custom-finish cables right on-site with clean bends and stress-tested ends. They’re a must for racks squeezed into tight control booths or under movable stages.
We stock various kits in all mobile event rigs, letting installs get done within minutes instead of days.
Custom-length cable optimisation onsite
No one wants loops of cable snaking behind gear. Trimmed-to-fit timing and video cords cut frustration. Our service vans carry riser-rated bulk cable rolls ready for site needs.
From rooftop camera lines to under-table control decks, we make sure lengths match layout-not just standard cuts.
Compatibility with Cat 5e to Cat 7A UTP/STP
Today’s AV jobs deal with leftovers from prior setups. We bring connectors, converters, and junctions that handle all categories.
From Cat5e behind old projection gear to new 7A runs in digital control rooms, our tools play with all grades. We test each pair with handheld verifiers before calling any test “done.”
Application of modular solutions on projects
Modular cabling fits weird site shapes, moving parts, and future change. We use keystone panels, snap-in extenders, and wheel-friendly mounted spools. Whether in a floating venue like Oasis or a street market zone, modular gear means faster install and cleaner teardown-no zip ties tangled with legacy gear or mystery cabling.
Common Challenges and Practical Solutions
Identifying causes of video signal loss
We see video blink-outs from damaged cables, wrong impedance, or underpowered extenders. Our fix begins with swapping cords, checking termination, then verifying feed signal strength. Signal testers and inline boosters stay packed in all service cases.
Even outdoor zones like food courts get weather-protected housing for HDMI or SDI hubs.
Managing heat and cable congestion
Trapped heat in racks wrecks performance. We leave a 20% free space buffer inside enclosures and use breathable cable channels. AV enclosures run hot even when idle, so proper spacing reduces thermal build-up and clogged airflow.
Smart fans with temp sensors activate only when needed, adding to overall system depth and lifespan.
Fast fixes for unresponsive AV equipment
Gear freeze-ups never schedule themselves. Power cycle is step one, but we also test feeds, re-seat connectors, and isolate device faults. A colour plate not showing up? May just need re-edid syncing.
Resetting switches in our node tree always follows a documented hierarchy-saving time and avoiding blind guesses mid-show.
Cable labelling and routing best practice
No cable should disappear without a label. We follow a simple “Zone-Port-Purpose” sticker rule for every patch or soft run. Labelling pays back when events go live or teams rotate.
Colour-coded wraps and floor-level Velcro uphold routing clarity across months, especially in high-traffic zones like stage left or the video booth bay.

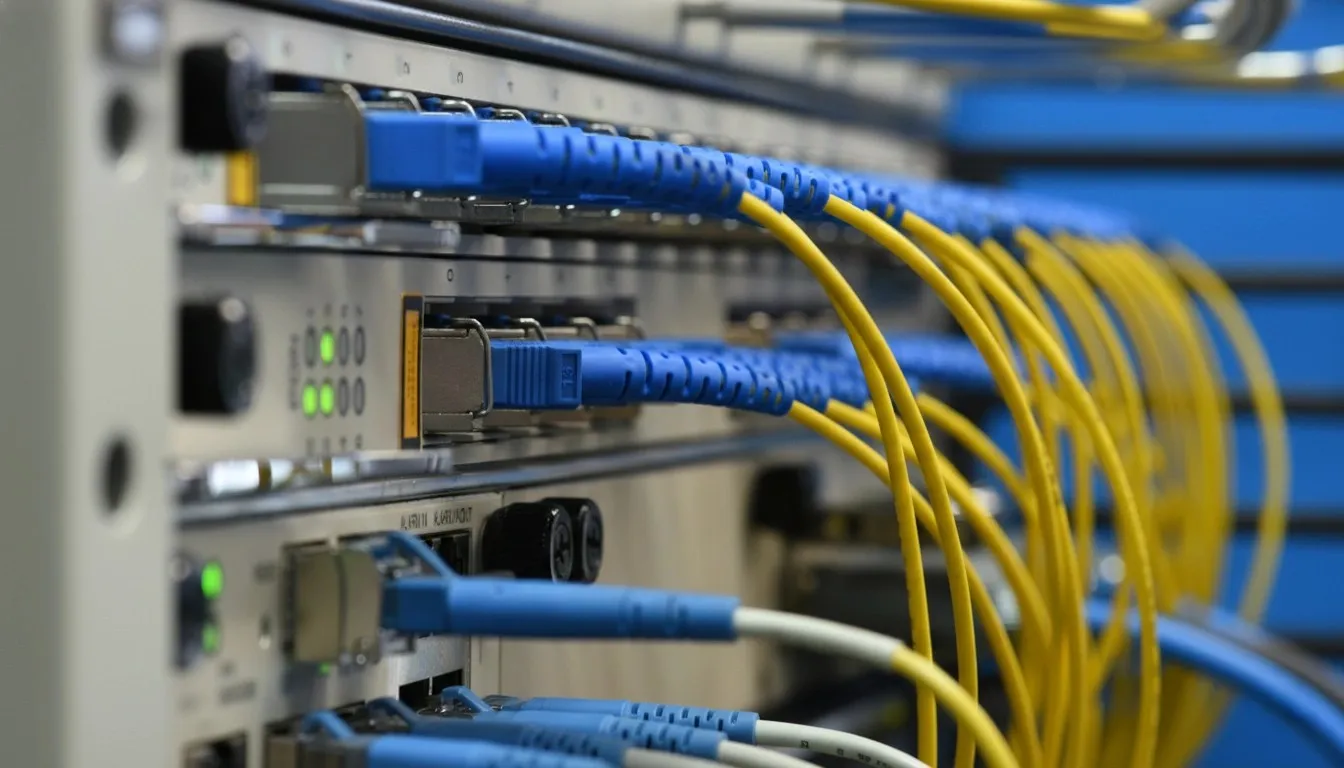

Design Considerations for AV Cabling Infrastructure
Coordination with facility layout and aesthetics
Cables don’t belong across walkways or behind art displays. Our early surveys map install paths under skirting, through ducts, or behind panelling. Whether it’s a floating luxury barge or a retro stage hall, tech should hide in plain sight, not distract from the event or venue charm we support.
Scalable cabling for future upgrades
Systems grow with event scale and gear refreshes. We install conduit paths with 30% spare room for easy re-pulls.
Smart trays and empty junctions give event planners and clients options-whether adding a camera feed for streaming or lighting upgrades. Keeping room in the pipe saves cost later.
Compliance with safety and building codes
We stick to code, every rig, every site. Fire-rated cables, anti-trip mats, and overcurrent devices are non-negotiable. From an outdoor cafe launch to a five-storey venue, we clear fire wardens and council inspectors with pre-cert sheets.
Legal peace of mind lets AV teams focus on delivering show-day thrills.
Integration with digital signage and conferencing zones
Signage, public info displays, and meeting systems often link into media servers. We create centralised control nodes that pair AV sources with signage in real-time.
Meeting zones get IR blaster feeds or wall-panel relay triggers-all routed neatly behind faced walls to avoid exposing tech to everyday knocks or spills.
Advanced Cabling Technologies and Components
Use of pigtails, enclosures, and jumpers
Jumper cables and pigtails connect critical nodes without yanking on main lines. Inside AV enclosures, these short link cables save racks from repeated bending.
We stock all common jumper types, strain relief boots, and housing panels across events. Proper looping and anchor points reduce install damage during high activity.
High-temp shielded cables for PoE performance
Heat and PoE don’t mix well. We use high-temp rated cables wrapped in foil-backed braid shields.
Under lighting grids and in networking closets, this cabling keeps PoE link speeds clean and avoids bulk loss. UL-rated builds matched to current draw help us step past heating problems.
Benefits of reduced alien crosstalk designs
Alien crosstalk happens when signals hop across cables. Extra shielding without jacking up price is key. We source diagonally wrapped isolation builds or centre-separated design cables to reduce signal bounce.
Clean split spacing in backbone channels limits cross bleed between audio and network lines in multicore heavy zones.
Termination innovations (e.g. LightBow™ system)
Speedy, fool-proof fibre terminations mean fewer retries. LightBow™ uses mechanical locking and centring to give clean ends without polish.
We use these for final install terminations in rear-rack layers or when installing wall-feed optical ports. Saves 10-15 minutes per line while boosting install consistency across crew members.
Energy Efficiency and Sustainability in AV Systems
Low-energy devices selection and setup
Smaller draws teamed with smart switching make a dent in energy use. We pick DSPs and interfaces that sip power while idle.
Even lighting rig controllers are now energy-aware. At indoor installs, eco-modes across gear settings help cut back system load without losing visual or playback quality.
Monitoring energy use in AV networks
Power monitoring routers and PDUs feed real-time stats. Watching usage graphs is part of our checkup crew’s routine.
Over time, we adjust hub locations and move neighbours apart to prevent clustering heat where too many devices share space. This gives gear a longer life and prevents mid-event faults.
Minimising idle load power in equipment racks
Unused tech still pulls juice. Smart strips kill power to unused ports and switchers when video isn’t in use. We program rack timers to match event hours.
That way, conference zones don’t hum all night-or set off fire alarms from false load curves. Scheduling saves money and heat stress both.
Hybrid and renewable power supplementation
Festivals and remote activations benefit from solar-assist or battery edge feeds. We test all genset ties with synchronisers for phase-matched input.
Where silent operation zones exist, like speaker lounges or press rooms, portable battery inverters power the system without hum or fume. It’s clean and venue-friendly.

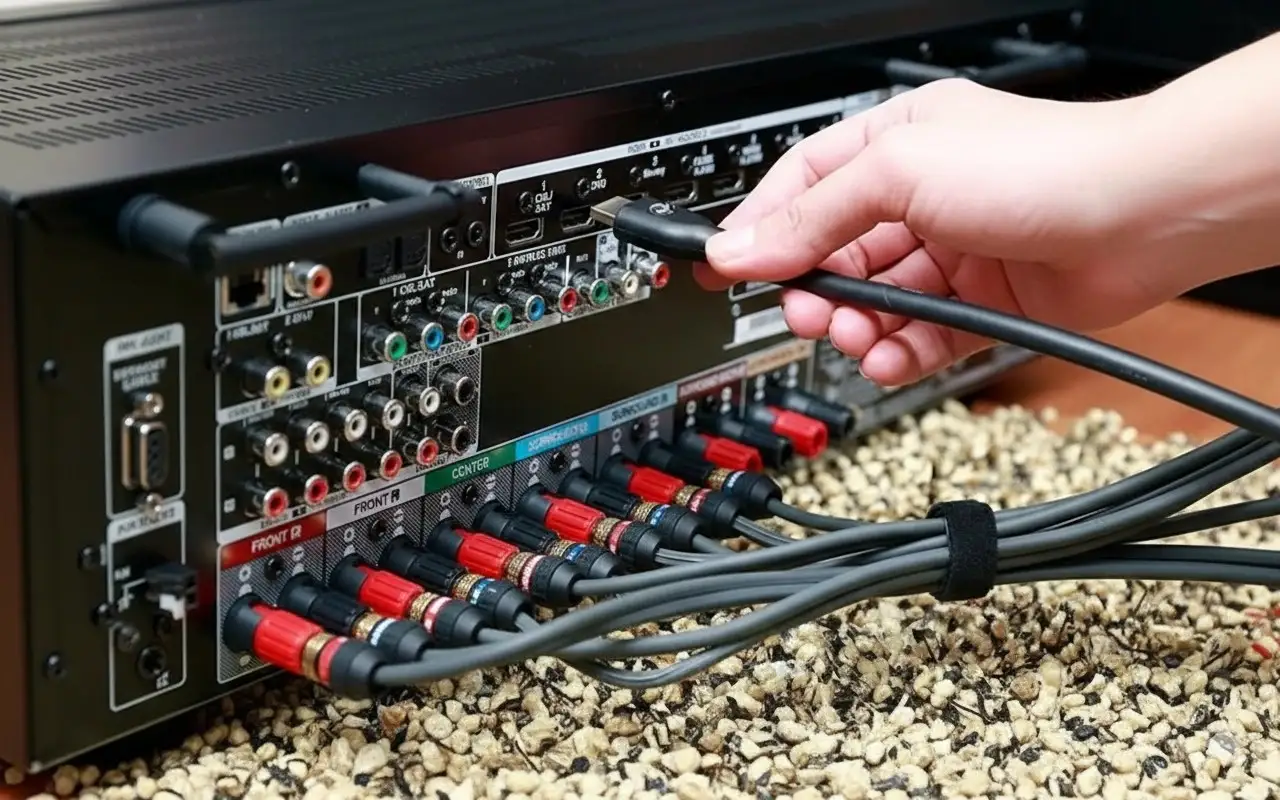

Maintenance and Lifecycle Care for AV Cabling and Power
Cable inspection and life expectancy
Cords aren’t forever-they fray, pinch, or corrode. We prep checklists for each install re-run. Ground pin wear or half-bent RJ tabs signal overdue refresh.
Using yearly inspection charts keeps each event’s base gear reliable without guesswork. For marine rigs like Oasis, we seal tips in anti-rust gel boots.
Modular replacements for damaged cables
One bad line shouldn’t sink a system. Modular patching lets us pull damaged bits without disassembling hubs. All lengths under 3M are coiled in labelled pouches. Terminal ends clip to panels with tool-less toggles, so any tech can tackle repairs-even if it’s midnight mid-event.
Scheduled power testing and calibration
Regular power testing and calibration ensure stable voltage and proper grounding throughout your AV system. By catching issues early and balancing loads, we prevent outages and equipment damage, keeping your events running smoothly without surprises.
When Everything’s on the Line, You Need the Right Support Behind the Scenes
The cables may be tucked away and the gear may be hidden, but their impact is impossible to miss. From that first mic check to the final applause, what happens behind the curtain often decides how the experience lands in the spotlight.
That’s why choosing the right setup matters-it’s the glue holding every cue, cue light, and connection together. A well-wired show feels smooth, confident, and utterly effortless, even when the clock is ticking and expectations are sky-high.
At Showtime Production Services, we make complex cabling and power solutions feel simple, because that’s how it should be.
Let’s get your next event running like clockwork-start with a quick chat today.
